In the world of architectural flooring (LVT/SPC), if the core is the “backbone”, the locking system is the “joint” that dictates the success or failure of the entire project. A sub-optimal click system doesn’t just cause gapping or broken joints—nasty surprises like increased labor costs and warranty claims follow closely behind.
Currently, three giants dominate the global locking market: Välinge, Uniclic, and i4F. Each is designed with a different philosophy to suit specific product strategies and market segments. At VN Ecofloor, with nearly a decade of experience exporting to the world’s most demanding markets, we understand the advantages and disadvantages of each type of locking system to advise our B2B and wholesale partners.
Here is our detailed breakdown to help you choose the ultimate solution for your brand.
Uniclic vs Välinge vs i4F: Choosing the Right SPC Locking System

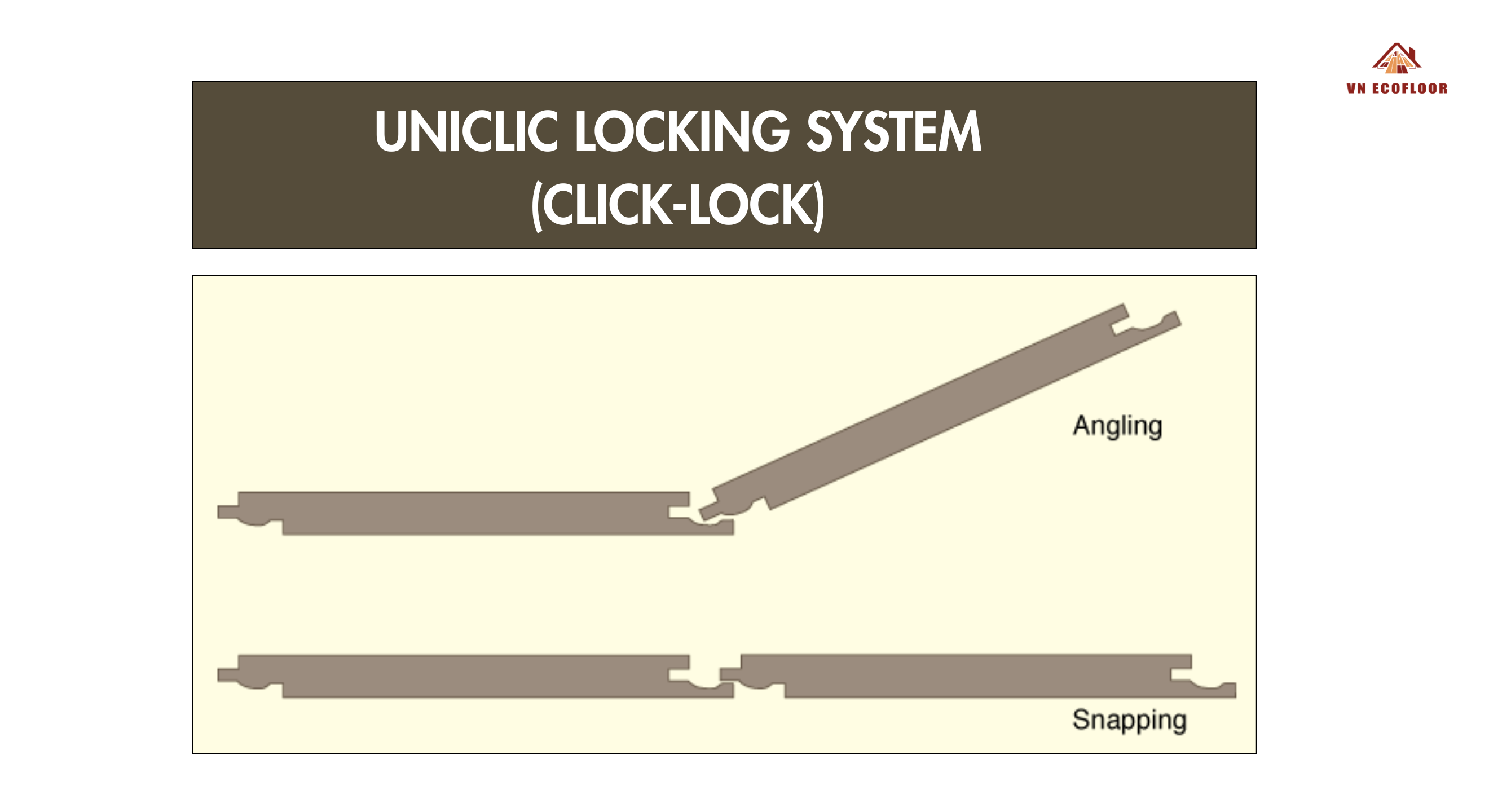

Uniclic (By Unilin)
Uniclic is the veteran of the flooring industry, famous for being the world’s first glueless locking system.
- Mechanism: It primarily uses the “Angle-Angle” method. Planks are hooked together with a precision-engineered profile that creates an incredibly tight lock.
- Standout Features: It leads the market in tensile strength (horizontal pull resistance). Once locked, Uniclic creates a remarkably flat and stable surface, making it the go-to for large open spaces where gapping is a major concern.
- Installation: It’s a bit slower and requires experienced installers. You’ll often need a rubber mallet and a tapping block to snug the short sides together.
- Pricing: Best for high-end projects where stability is the only priority. As the most established brand, its licensing fees are typically higher than those of its competitors.
Välinge

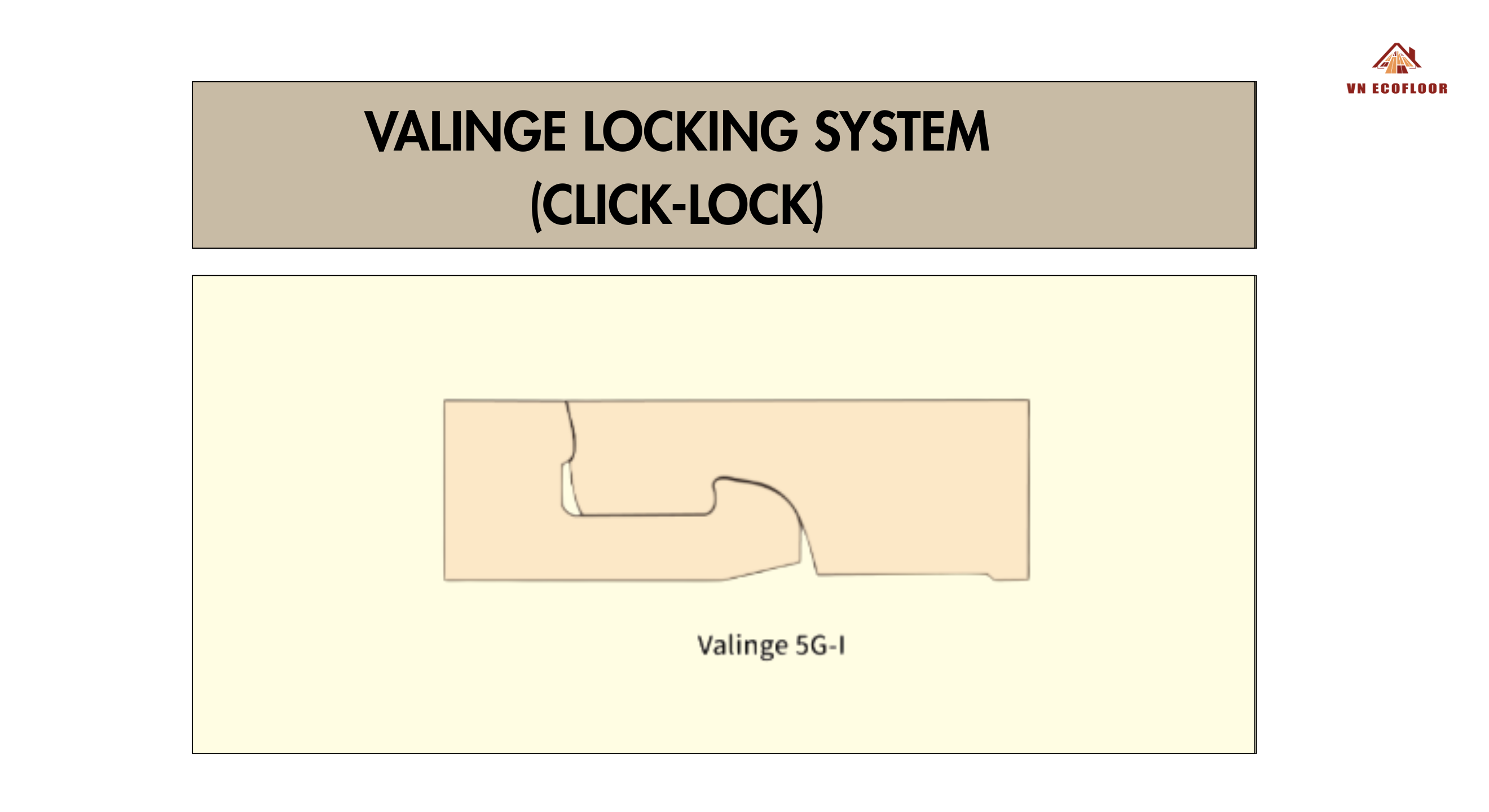

2.1 Välinge 5G (Fold-down)
A heavyweight contender from Sweden, Välinge is most famous for its 5G technology.
- Mechanism: It features a plastic insert on the short side. When you press the plank down, this insert retracts and then snaps back out to lock the plank permanently in place.
- Standout Features: You’ll hear a very distinct “click” during installation, giving the installer immediate feedback that the joint is secure. It is incredibly fast.
- Installation: Effortless. A single person can install a floor using the simple fold-down motion.
- Pricing: High. The cost of the license plus the plastic insert makes it a premium choice. Best for mass projects where speed equals profit.

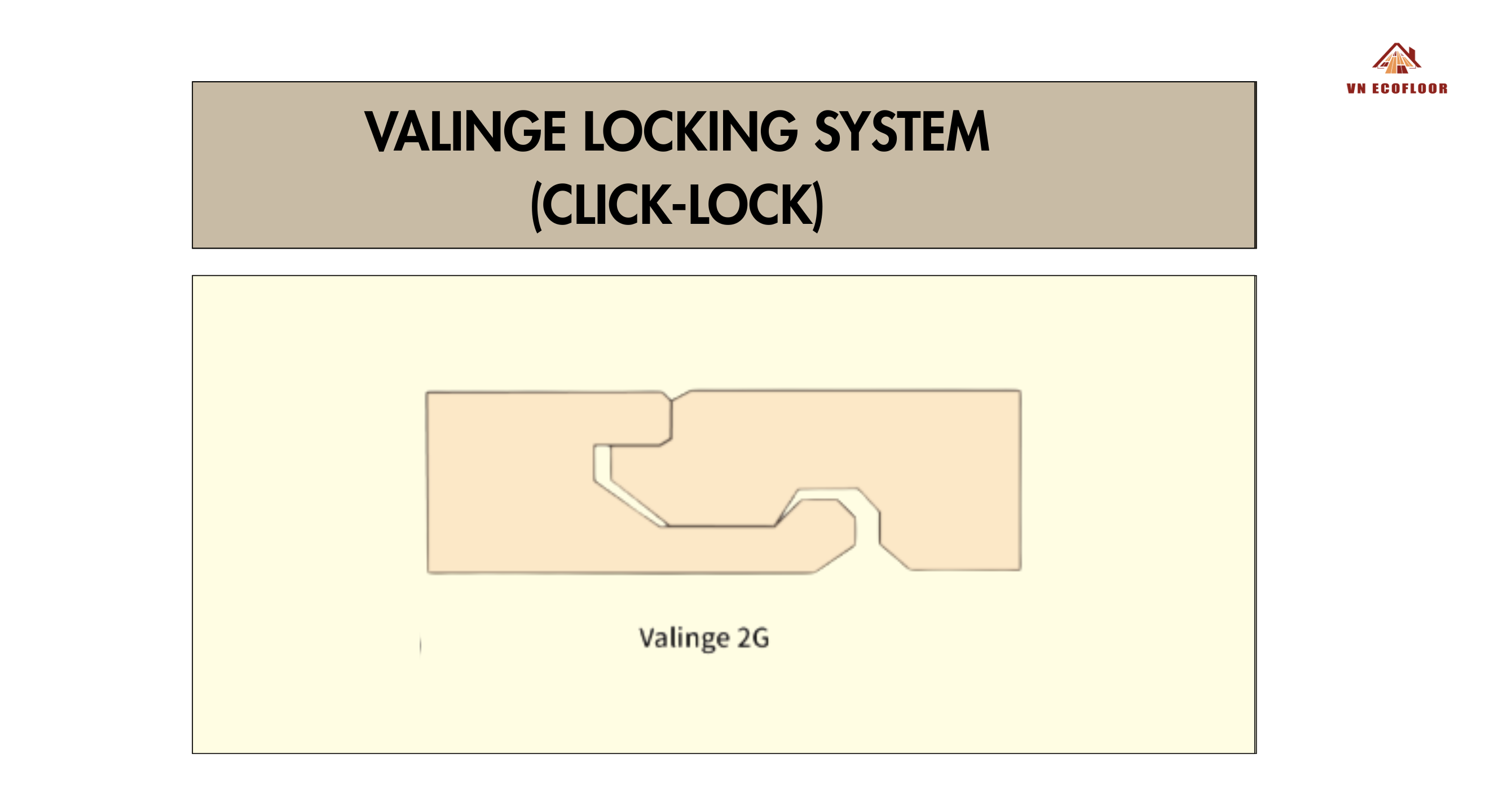

2.2 Välinge 2G
This is an early mechanical locking system, yet it remains extremely popular and trusted to this day thanks to its unparalleled bonding strength.
- Mechanism: Unlike the 5G system, which uses a “Fold-down” mechanism, the 2G system works by corner joining for both the long and short edges. You need to tilt the floor panel at a certain angle to fit the long edge groove to the previous panel. Then, for the short edge, you must also use the corner joining technique or use a rubber mallet with a pad (tapping block) to gently tap the grooves together horizontally.
- Standout Features: Unmatched Strength. Because the lock is carved directly from the core material (no plastic inserts), it is exceptionally robust. It offers incredible tensile strength, ensuring the floor stays together even in expansive installations.
- Installation: Slower than 5G, requiring more manual effort and tools.
- Pricing: Medium-High. Ideal for projects that demand durability over installation speed.

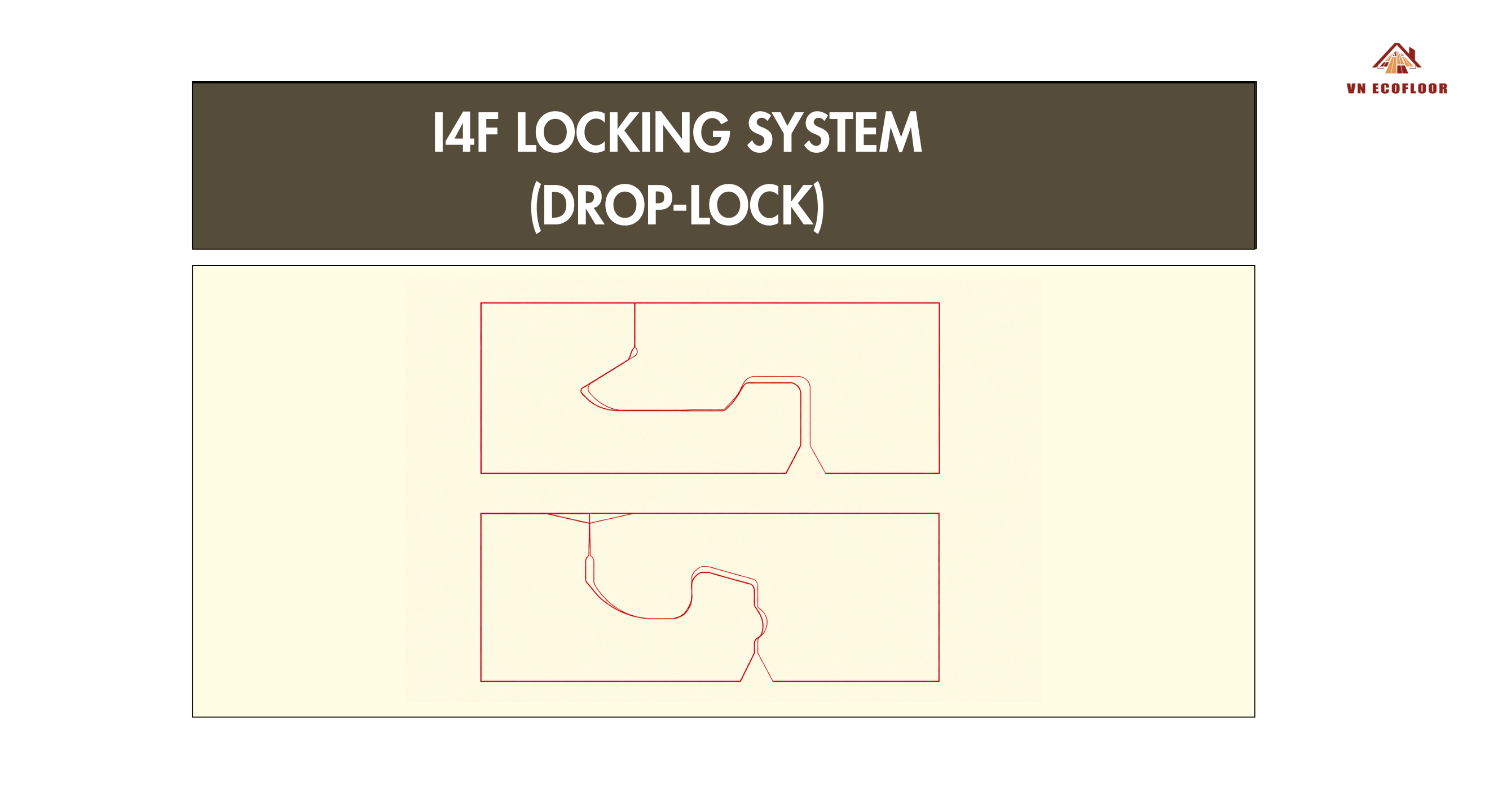

i4F (Drop-Lock Solution)
i4F is a “rising star” and is currently a strategic partner of many large factories, including VN Ecofloor.
- Mechanism: Utilizes 3L TripleLock and Click4U technologies. This is a one-piece locking system, requiring no auxiliary plastic strip but still achieving effective 3-dimensional locking.
- Key Features: No separate parts (like 5G’s inserts), it minimizes the risk of broken components or misalignment.
- Installation: The Fastest and Easiest. Just drop the plank and give it a light tap with a mallet. It can save up to 30% in installation time compared to traditional Uniclic systems.
- Pricing: Most Competitive. i4F offers high-tier technical value with a more sensible licensing fee, allowing wholesalers to maximize their profit margins.
Quick comparison table
| Criteria | Välinge 2G | Välinge 5G | Uniclic | i4F |
|---|---|---|---|---|
| Installation Speed | Medium | Very fast | Medium | Very fast |
| Ease of Installation | Requires skilled installers | Very easy | Moderate | Easy |
| Tools Required | Rubber mallet + tapping block | Minimal tools | Rubber mallet + tapping block | Rubber mallet |
| Locking Strength | Very high | High | Very high | High (depends on profile design) |
| Long-term Stability | Very high | Depends on insert quality | Very high | High |
| Licensing Cost | Medium | High | High | Competitive |
| Total Project Cost | Medium | High | High | Optimized |
Why VN Ecofloor is the Strategic Partner for Your Brand
Choosing an interlocking system is not just a technical issue but also a strategic business decision. At VN Ecofloor, we don’t limit our partners’ choices. As a leading flooring manufacturer and exporter with nearly 10 years of experience, we are proud to offer dual-locking solutions:
- Owning both “giants” Uniclic & i4F: Whether you need the absolute stability and long-standing quality of Uniclic or prioritize the speed of construction and cost optimization of i4F, VN Ecofloor is ready to meet your needs. Our full international licensing ensures your products enter markets like the US and EU with zero legal friction.
- 100% Virgin Resin Core: An expensive locking system is useless on a low-quality core. At VN Ecofloor, the interlocking system is milled and cut from a pure virgin resin core, ensuring durability, resistance to brittleness and breakage, and maintaining perfect bonding strength throughout the product’s lifespan.
- Massive Industrial Scale: With a capacity of 20,000,000 m² per year, we guarantee absolute precision in the accuracy of the interlocking system on every square meter of flooring, whether it’s a single container order or large-scale projects.
- International Quality Standards: Every shipment undergoes a rigorous 10-step quality control process. From FloorScore® and CE certifications for health and safety to UTM tensile strength tests, we guarantee “Stability” is not just words, but a technical commitment.
Conclusion
Choose interlocking systems, choose peace of mind.
If you are looking for a capable OEM partner that can supply the world’s most advanced interlocking technologies, such as Uniclic and i4F, while ensuring export-standard subfloor quality, VN Ecofloor is the answer.
👉 [CONTACT VN ECOFLOOR] today for expert advice on the most suitable interlocking system for your customer segment and receive the latest Sample Book!
Hotline: +84 88 801 81 28
Website: vnecofloor.com
FAQs
- What is the most important factor when choosing an SPC locking system?
It all comes down to the specific requirements of your project. You need locking strength for high-traffic commercial areas or installation speed for tight residential deadlines. Factor in your budget for licensing and labor, as the “best” system is simply the one that solves your project’s biggest challenge—be it durability, time, or cost.
- What is the difference between drop-lock and angle-lock systems?
Think of them like this: Angle-lock (like Uniclic) is like a traditional puzzle where you tilt the planks to fit them together—it’s incredibly secure but takes a bit more technique. Drop-lock (like i4F) is more like “LEGOs”—you just line them up and press down. One is built for maximum joint grip, while the other is built for record-breaking speed.
- Which locking system is the fastest to install?
If “time is money” for your project, i4F and Välinge 5G are the undisputed winners. Their “drop-and-go” mechanisms are a game-changer for large-scale jobs because they significantly cut down on labor hours. It’s the favorite choice for contractors who want to get the job done fast without sacrificing quality.
- Which locking system offers the highest strength and stability?
When you’re dealing with massive open spaces or high-traffic commercial areas, you want the “grip” of Uniclic or Välinge 2G. These systems are famous for their high locking strength. They keep the planks tightly knitted together, which is critical for minimizing gaps and ensuring the floor stays stable for decades.
- Why does the locking system affect the total project cost?
It’s a common mistake to only look at the licensing fee on the box. You have to look at the “big picture.” A faster system like i4F can save you a fortune in labor costs on the job site. On the flip side, a stronger system like Uniclic can save you from the expensive headache of warranty claims and repairs down the road. It’s all about managing your long-term risks.
- Can a good locking system compensate for poor core material?
No. Putting a world-class lock on a cheap, recycled core is like putting a luxury steering wheel on a car with a broken engine. The “teeth” of the lock need a high-quality, 100% virgin resin core to bite into. Without a stable foundation, even the best locking system in the world will eventually fail. Therefore, quality has to go all the way through the plank.
